Arched Window Film: Custom Cutting Tutorial for a Perfect Fit Every Time

Why Arched Windows Require Special Attention

Arched windows — also called radius windows, half-moon windows, or Palladian windows — are one of the most elegant architectural features in American homes. But when it comes to applying privacy film, blackout film, or decorative window film, their curved shape presents a unique challenge that standard rectangular cutting simply can't solve.

Whether you're a homeowner looking to add privacy to a bathroom arched window or a renter wanting a damage-free solution, this step-by-step custom cutting tutorial will walk you through the entire process like a professional installer.

Tools & Materials You'll Need

• Window privacy film (frost, blackout, one-way mirror, or decorative)
• Measuring tape
• Kraft paper or butcher paper (for template)
• Pencil or marker
• Sharp utility knife or precision craft knife
• Cutting mat
• Squeegee or credit card
• Spray bottle with soapy water solution (a few drops of dish soap per quart)
• Lint-free cloth or microfiber towel

Step 1: Measure Your Arched Window Accurately

Accurate measurement is the foundation of a clean installation. For arched windows, you'll need to capture both the rectangular base and the curved arch separately.

1. Measure the width at the widest point of the window (typically the base of the arch).
2. Measure the total height from the bottom sill to the very top of the arch.
3. Measure the height of the rectangular portion below the arch separately.
4. Note the radius of the arch — this is the distance from the center of the base to the top of the curve.

Pro Tip: Always measure twice. Even a ¼-inch discrepancy can cause visible gaps or film overlap on curved glass.

Step 2: Create a Paper Template

This is the most critical step for arched windows. A paper template eliminates guesswork and ensures your film matches the exact curve of your window.

1. Cut a piece of kraft paper slightly larger than your window dimensions.
2. Hold or tape the paper against the glass surface.
3. Use a pencil to trace the exact outline of the window frame from the inside, following the arch curve carefully.
4. Remove the paper and lay it flat on your cutting mat.
5. Cut along the traced line with scissors — this is your master template.
6. Test fit the template against the window before cutting your film. Trim as needed until it fits flush with no gaps.

Pro Tip: For symmetrical arches, fold the template in half vertically and trim both sides simultaneously to ensure a perfectly even curve.

Step 3: Transfer the Template to Your Window Film

1. Lay your window film face-down on a clean, flat surface (liner side up).
2. Place your paper template on top of the film liner.
3. Trace the template outline onto the film liner with a marker.
4. Using a sharp utility knife and cutting mat, carefully cut along the traced line.
5. For the curved arch section, use slow, deliberate strokes — don't rush the curve.

Pro Tip: A fresh blade makes all the difference. Replace your utility knife blade before cutting to ensure clean, smooth edges on the arch curve.

Step 4: Prepare the Window Surface

A clean glass surface is essential for proper adhesion and a bubble-free finish.

1. Clean the window thoroughly with a glass cleaner or the soapy water solution.
2. Remove all dust, grease, fingerprints, and debris.
3. Dry the glass completely with a lint-free cloth.
4. For static-cling films, the glass should be slightly damp during application — do not dry completely.

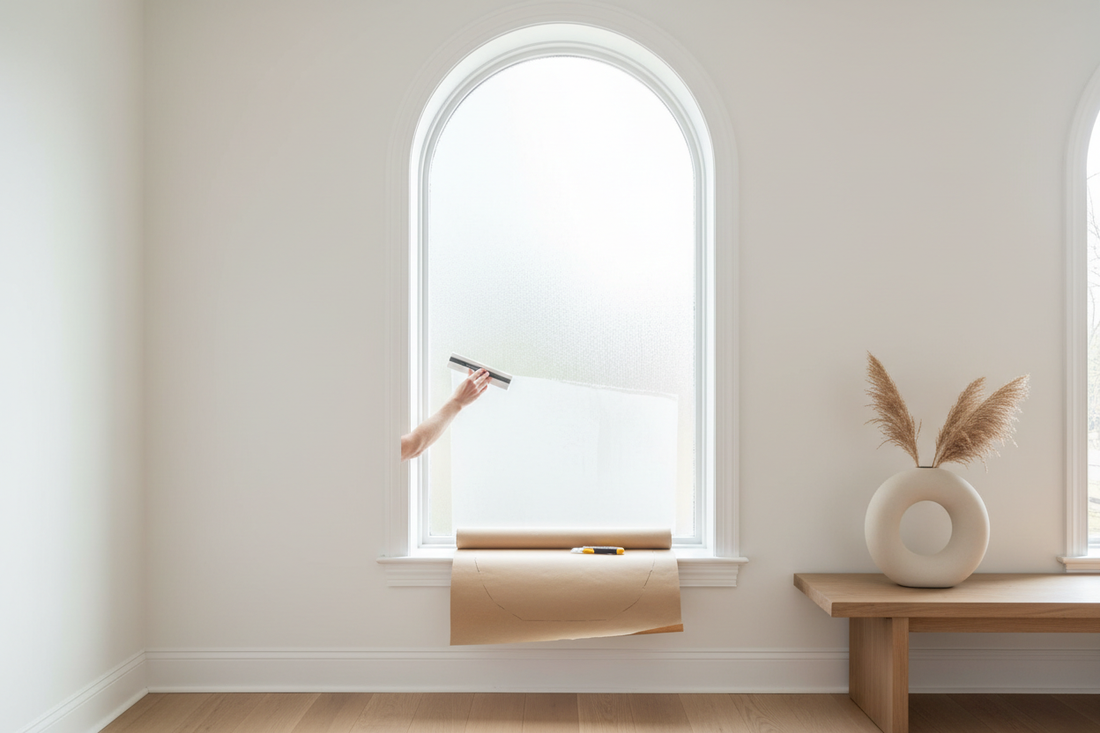

Step 5: Apply the Window Film

1. Lightly mist the glass surface with your soapy water solution.
2. Peel the liner from your cut film piece, starting from one corner.
3. Mist the adhesive side of the film as well — this gives you working time to reposition.
4. Carefully position the film on the glass, starting from the bottom and working upward toward the arch.
5. Use a squeegee to smooth the film from the center outward, pushing out air bubbles and excess water.
6. Pay extra attention to the curved arch edge — use the squeegee in small, overlapping strokes along the curve.
7. Trim any minor overhangs with a utility knife held at a slight angle against the frame.

Step 6: Final Inspection & Finishing Touches

• Check for any remaining air bubbles — small bubbles will typically disappear within 24–48 hours as the film cures.
• Use a soft cloth to press down any lifted edges along the arch curve.
• Avoid cleaning the film for at least 72 hours after installation to allow full adhesion.

Common Mistakes to Avoid

• Skipping the paper template: Eyeballing the arch curve almost always results in a poor fit.
• Using a dull blade: Ragged cuts are especially visible on curved edges.
• Rushing the squeegee on curves: Take your time — the arch requires more care than straight edges.
• Not testing the template first: Always dry-fit before cutting your film.

Best Window Films for Arched Windows

Not all window films are equally suited for arched windows. Here's what to look for:

• Frost Privacy Film: Ideal for bathrooms and entryways — diffuses light while maintaining brightness.
• One-Way Mirror Film: Perfect for living rooms with arched windows facing the street — daytime privacy without blocking your view.
• Blackout Film: Best for bedrooms or media rooms where complete light control is needed.
• Decorative Rainbow Film: Adds a stunning prismatic effect to arched accent windows.

Renter-Friendly Options

If you're renting, static-cling window films are your best friend. They require no adhesive, leave zero residue, and can be removed and repositioned without damaging the glass — making them fully renter-friendly and landlord-approved.

Final Thoughts

Cutting window film for arched windows doesn't have to be intimidating. With the right tools, a precise paper template, and a steady hand, you can achieve a professional-quality installation that looks custom-made — because it is. Take your time on the arch curve, and the results will speak for themselves.
